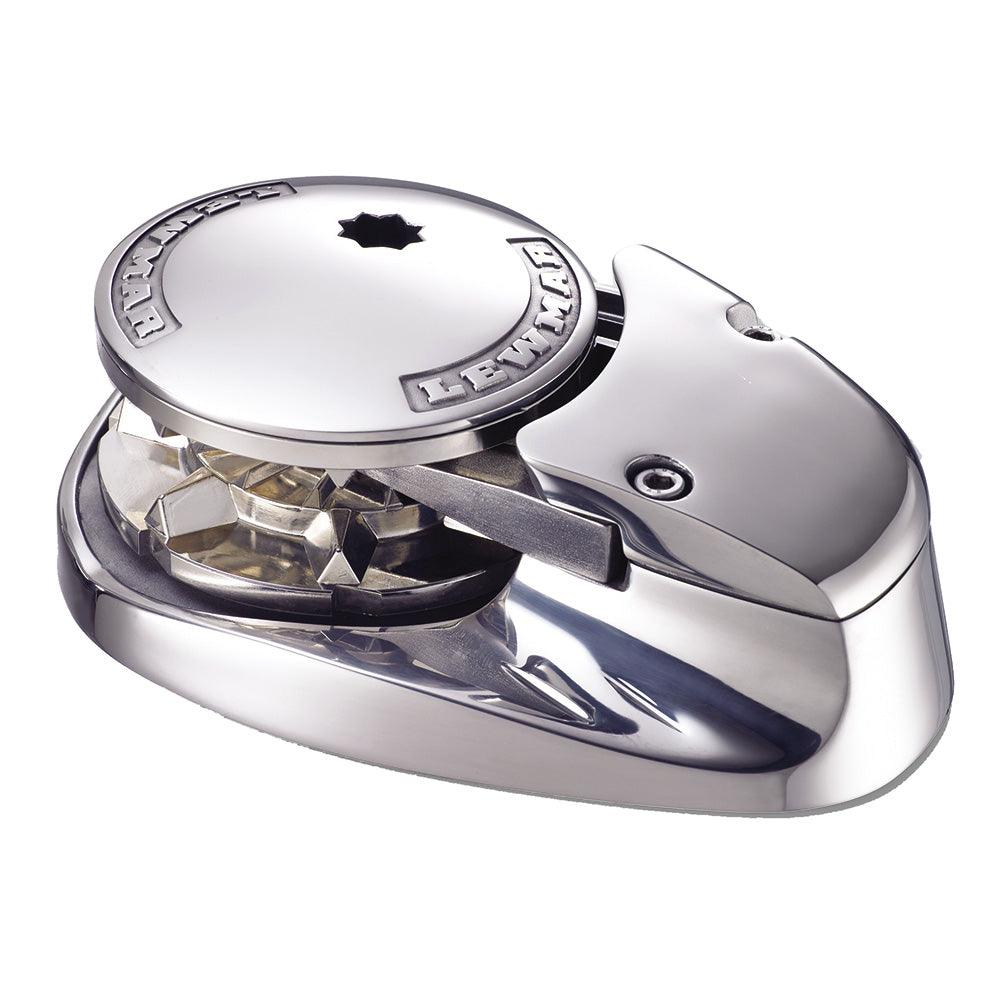

Lewmar V700 Vertical Windlass Kit - 12V [6670011108-312]

Lewmar V700 Vertical Windlass Kit - 12V [6670011108-312]

Regular price $1,083.99 USD
Regular price $1,723.95 USD Sale price $1,083.99 USD
Sale Sold out

V700 Vertical Windlass Kit - 12V

With 100%  316 stainless steel housing and a sleek flush-mount design that hides the motor down below, the V700 is one of the most attractive and durable windlasses on the market.  It works at the push of a button and has two built-in features that make it unique - motor protection and anchor lock.

The V700 comes with a gypsy able to accept 1/4 inch chains.

Features:

  • For rope, chain, or combination rodes
  • Built-in motor protection and fail-safe anchor lock
  • Easy installation
  • Fast line speed
  • Manual recovery option
  • Impact-resistant cover

Technical Specifications:

  • Material - Stainless Steel
  • Maximum Pull - 700lbs
  • Maximum Line Speed - 82'/min
  • Maximum Chain Size - 1/4"
  • Maximum Rope Size - 1/2"
  • Power - 12 V
  • Maximum Boat Length - 35'
  • Mounting Position - Vertical
  • Weight - 14lbs

In the Box:

  • Windlass
  • Switch
  • Dual direction contactor/solenoid
  • Circuit breaker
  • Instruction manual

*Sold as an Individual

Specifications:

  • Chain - Diameter (Inches): .25
  • Freefall: Yes
  • Rope Diameter (Inches): .5
  • Vertical/Horizontal: Vertical
  • Box Dimensions: 8"H x 11"W x 12"L WT: 20 lbs
  • UPC: 743683302930

Owner's Manual (pdf)
