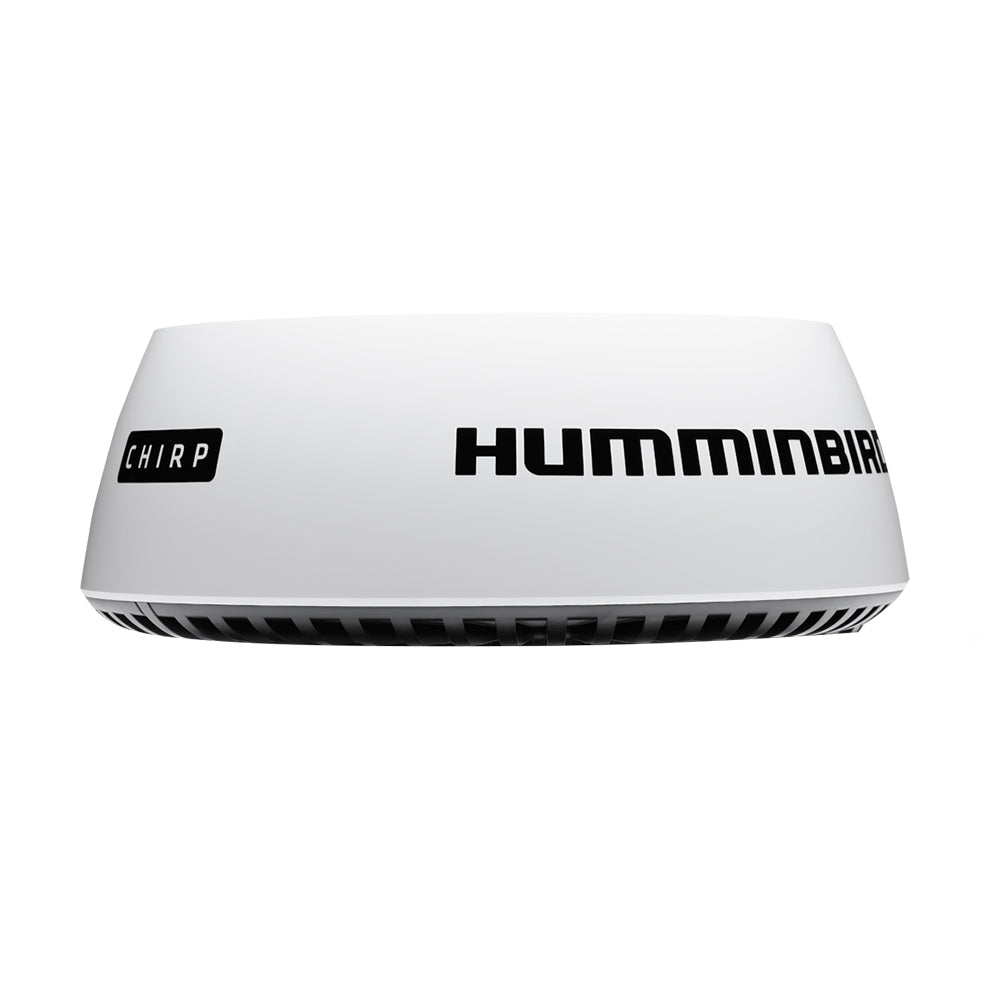

Humminbird HB2124 CHIRP Radar [750013-1]

Humminbird HB2124 CHIRP Radar [750013-1]

Regular price $1,918.99 USD
Regular price Sale price $1,918.99 USD
Sale Sold out

HB2124 CHIRP Radar

Compatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.

Features:

  • Antenna Dimension - 21" Enclosed Dome
  • Antenna Type - Patch Array
  • Peak Power Output - 20W
  • Transmit Frequency - 9354 to 9446 MHz
  • Beam width (nominal) - 4.9° Horizontal and 20° Vertical
  • Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
  • Networking - Ethernet
  • Maximum Range Scale - from 1/16 to 24 nautical miles
  • Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
  • Duplexer - Circulator
  • Pulse Widths @ 3 dB - 40 ns to 14.7µs
  • CHIRP Lengths - 400 ns to 20µs
  • CHIRP Bandwidth - Up to 32 MHz
  • IF Bandwidth - 26 MHz
  • Noise - Less than 4 dB
  • Polarization - Horizontal
  • Waterproofing - IPX6
  • Weight - 12.3 lbs (5.6 kg)
  • Compatibility Networking HELIX models and all ONIX models

Specifications:

  • Array Size (Inches): 21"
  • Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs
  • UPC: 082324050169

Owner's Manual (pdf)
